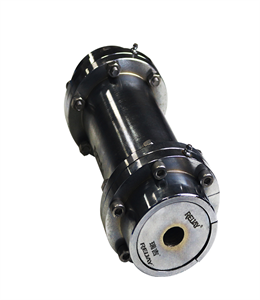

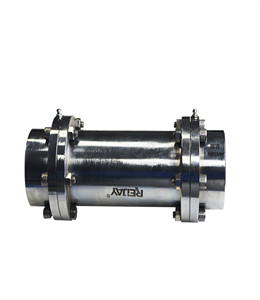

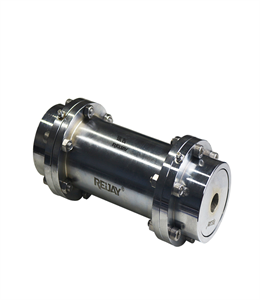

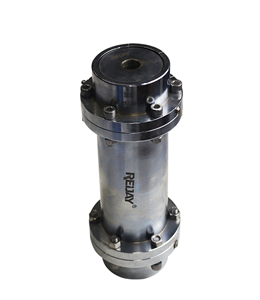

Disc coupling Configuration SX
Disc coupling is composed of several groups of diaphragm (stainless thin plates), connecting with a two half couplings with bolts interlocked. Each group of diaphragm is made of several overlapping pieces. The disc coupling is divided into rod types and different shapes of integral pieces. The elastic deformation then makes up for the relative displacement of the shafts. It is high performance dentex coupling with metallic element.
- The ability to compensate for the misalignment of the two axes is strong. Compared with the gear coupling, the angular displacement can be doubled, the reaction force is small during radial displacement, and the flexibility is large, allowing certain axial, radial and angular directions displacement.
- It has an obvious shock absorption effect, no noise and no wear.
- Adapt to high temperature (-80 ~ +300) work in harsh environments, and can operate safely under shock and vibration conditions.
- High transmission efficiency, up to 99.86%. Especially suitable for medium and high-speed high-power transmission.
- Simple structure, lightweight, small volume, convenient assembly and disassembly. It can be assembled and disassembled without moving the machine (referring to the type with an intermediate shaft), and no lubrication is required.
- It can accurately transmit the speed, and the operation has no slip, which can be used for the transmission of precision machinery.
