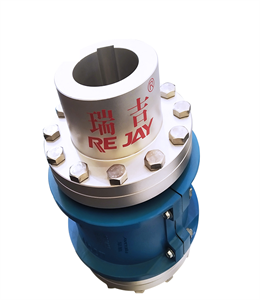

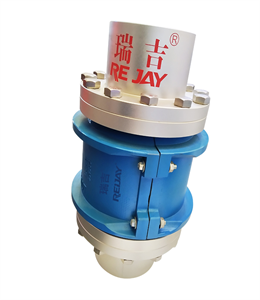

Grid coupling
The main structure of the grid coupling is composed of two half couplings, two half covers, two sealing rings and serpentine spring sheets. It transmits torque by embedding the serpentine spring into the tooth grooves of the two half couplings. It is mainly used in crushers, crank reciprocating motion, reducers, metallurgy, mining, lifting machinery, etc.
- Superior torsion buffer performance
With more than 30% of excellent shock absorption capacity, coupled with its superior buffer performance, it can effectively protect the drive device and the driven device, extending the service life of the equipment. - Special design guarantees long spring life
In special design tooth type, the spring of the coupling can be gradually fittedwith the hub tooth when running, when the coupling load increases, the contactarea of the spring and the hub tooth increases, and the friction stress is dispersedin a larger range, thereby reducing the local stress. - Good displacement compensation ability
High elasticity makes it absorb the shock and compensate for the displacement deviation through the extension of the spring during power transmission, which is conducive to reducing the impact review and concentrated stress. - To learn more, click here. GRID COUPLING
