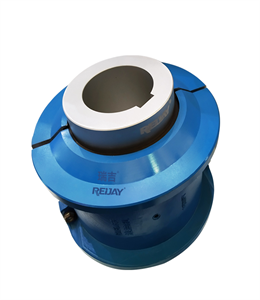

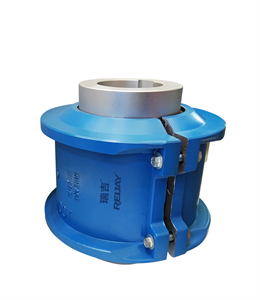

Grid coupling
The main structure of the grid coupling is composed of two half couplings, two half covers, two sealing rings and serpentine spring sheets. It transmits torque by embedding the serpentine spring into the tooth grooves of the two half couplings. It is mainly used in crushers, crank reciprocating motion, reducers, metallurgy, mining, lifting machinery, etc.
- Good shock absorption.long service life.
- Good withstand large variation and loading,safety starting.
- High efficiently power transmission and reliable running.
- Low noise.Good lubrication.
- Simple instructure, convenient installation.
- The whole unit less parts,small volumn,light weight.
- Large installation deviation is allowed
-
It is suitable for medium and high power transmission shafts connecting two coaxial lines,It can make up for two shafts relative skewing and shock absorption,cushion performance.working temperature:-30℃~+150℃,Transfer nominal torque45~800000.m
- Mainly be applied to stone breaker,The crank reciprocate, speed reducer,Metallurgy,Mining,Crane machine.
-
Shaft transmission of various other machinery and equipment,The places where Motor connected with reduction gearbox or shaft connected with shaft can be applied.
