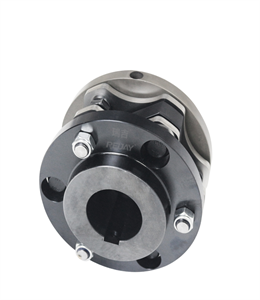

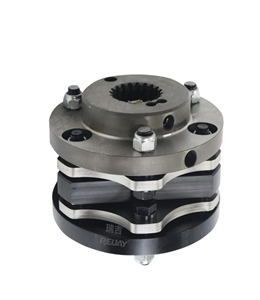

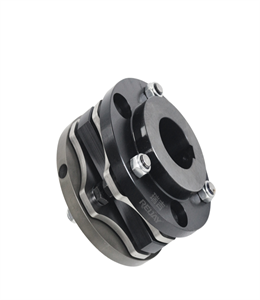

Disc coupling Configuration SXC
- Close coupled variation of the SX-type coupling
- It can be used with one or both hubs turned outward for different shaft separations.
- Make up for two shaft line is not in the same direction, comparing with gear coupling, the angular displacement can be twice as large. When radial displacement is applied, the reaction force is small, and flexibility is large. Allowing some axial, radial and angular displacement.
-
Having an obvious damping function, no noise, and no abrasion.
-
It is suitable for high temperatures (-80℃ ~ +300℃) and dreadful working environments, with safe running under compact and vibration conditions.
-
High transmission efficiency and it can reach 99.86%, especially suitable for medium and high-speed power transmission.
-
Simple structure, lightweight, small volume, convenient installation. It can be assembled and dismantled without moving the machine (refer to the type with intermediate shaft)
-
It can transfer rotation speed accurately and without rotation difference. It can be used in the transmission of precision machines.
-
It is widely used in different machine device shaft transmissions. Such as water pumps (especially high-power, chemical pumps), Fans, compressors, hydraulic machinery, petroleum machinery, printing machinery, textile machinery, chemical machinery, mining machinery, metallurgical machinery, aviation (helicopter), ship high-speed power transmission systems, steam turbine, piston power machinery transmission system,track-layer vehicles, as well as engine high speed and high power mechanical transmission systems, it has been widely used in high-speed transmission shafts after dynamic balance.
-
