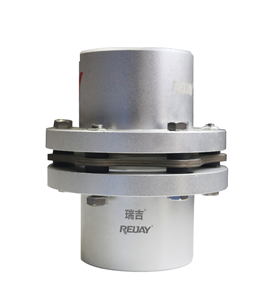

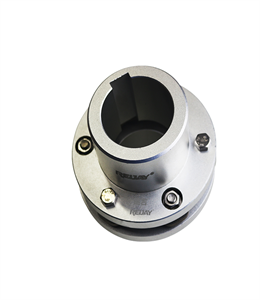

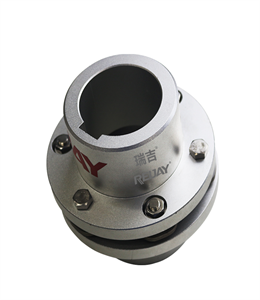

Disc coupling Configuration SU
- Close coupled variation of the SX Type coupling
- It can be used with one or both hubs turned outward for different shaft separations.
- Make-up for two shaft lines is not in the same direction; compared with gear coupling, the angular displacement can be twice as large. When radial displacement the reaction force is small and flexiblity is large. Allowing some axial,radial and angular displacement.
-
Having an obvious damping function, no noise, and no abrasion.
-
It is suitable for high temperatures (-800 ~ +300) and a dreadful working environment, and it is safe to run under compact and vibration conditions.
-
High transmission efficiency and it can reach 99.86%, especially suitable for medium and high-speed power transmission.
-
Simple structure, lightweight, small volume, convenient installation. It can be assembled and dismantled without moving the machine (refer to the type with intermediate shaft)
-
It can transfer rotation speed accurately and without rotation difference. It can be used in the transmission of precision machines.
-
It is widely used in different machine device shaft transmissions. Such as water pumps (especially high-power, chemical pumps), Fans, compressors, hydraulic machinery, petroleum machinery, printing machinery, textile machinery, chemical machinery, mining machinery, metallurgical machinery, aviation (helicopter), ship high-speed power transmission systems, steam turbine, piston power machinery transmission system,track-layer vehicles, as well as engine high speed and high power mechanical transmission systems, it has been widely used in high-speed transmission shafts after dynamic balance.
