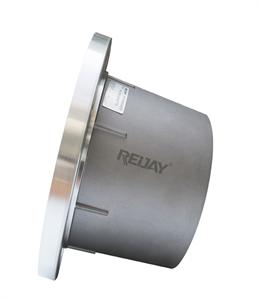

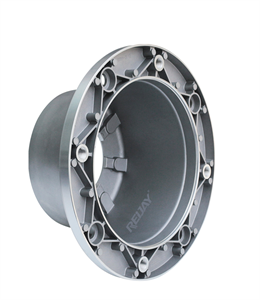

RV series bellhousing
RV series bellhousing is used for the connection of IEC standard motors and pumps or NEMA standard motors and pumps. Motor shaft and pump shaft adopt self-centering design, and the size is manufactured according to VDMA24561 standard. It can be used for overloading.

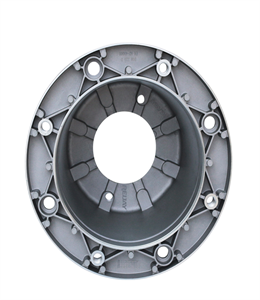

The hydraulic pump bellhousing is used to connect the IEC standard and NEMA standard motor and hydraulic oil pump. The motor shaft and the pump shaft are self-aligning designs, and the size is manufactured according to the VDMA24561 standard, which can be used for heavy loads. The bottom is not solid but has reinforcing ribs, and there are built-in shock absorption and external flange shock absorption options; there are observation holes on the side, which is convenient for observing the operation of the machine.
- Selected materials are aluminium alloy, cast iron, and nylon, using high and medium-low-pressure casting.
- Spinning and injection moulding technology is light in weight.
- Dense internal organization, high strength and good heat dissipation.
- Tensile strength: 228Mpa, yield strength: 154Mpa, elongation: 1.4%
- Strong stability, beautiful appearance and long service life.
- Simple structure, easy to operate and suitable for different working environments.
- Low noise operation is realized in all pressure ranges.
- German manufacturing technology guarantees product quality and comprehensive technical support.
