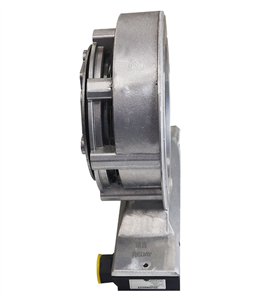

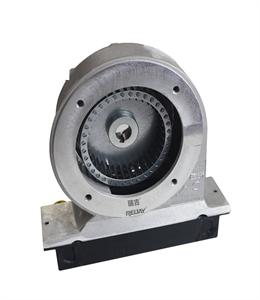

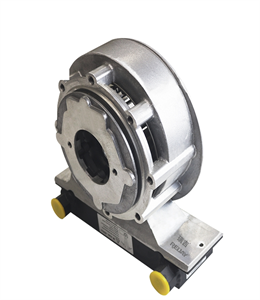

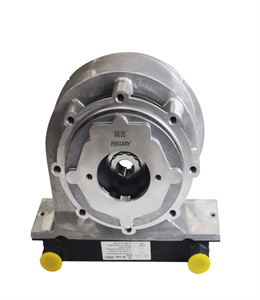

KPV Hydraulic Pump Bellhousing
KPV Hydraulic Pump Bellhousing is widely used in oil hydraulic systems. It Can withstand high pressure and protect cooling elements. Hydraulic Pump Bellhousing is available in rigid and shock-absorbing specifications.
- Compact structure, easy to install, environment friendly.
- Circulating cooling, no additional wind-driven equipment needed
- Shock on the pump end and bracket end could be reduced.
- Manufactured according to VDMA 24561 standard. And matched with brackets and bell housing.
- Testing pressure: In accordance with the DIN 50104 standard, the standard static pressure is 26 bar, and the maximum value could be 40 bar. Working pressure: 16 bar (tested 2 million times in the reciprocating circulation test under the condition of 60℃, 2Hz 0-16 bar).
- Structural components: aluminium alloy shell by pressure casting (bell housing)/cooling block (heat sinks)/fan blades with couplings, selectively assembled bell housing brackets and damping elements.
